Applications :

• Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology,especially converter technology.

Standards :

• BS 6853 -1a
• DIN 5510-1 1-4
• NFF 16-101 F0

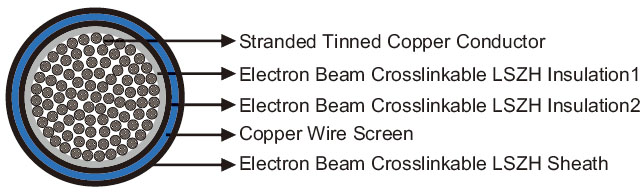

Construction :

• Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
• Insulation1 : Electron beam crosslinkable LSZH compound.
• Insulation2 : Electron beam crosslinkable LSZH compound.
• Screen : Copper wire screen.
• Sheath : Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	1.5	2.5	4.0	6.0	10	16	25	35	50
  Maximum Conductor Resistance	Ω/km	13.7	8.21	5.09	3.39	1.95	1.24	0.795	0.565	0.393
  Voltage Rating	KV	1.8/3

• Nominal Conductor Cross Section	mm²	70	95	120	150	185	240	300	400
  Maximum Conductor Resistance	Ω/km	0.277	0.21	0.164	0.132	0.108	0.0817	0.0654	0.0495
  Voltage Rating	KV	1.8/3

Mechanical and Thermal Properties :

• Minimum Bending Radius : 4xOD (Static); 8xOD (Flexing).
• Temperature Range : -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing).
• Short Circuit Temperature : +280℃.

Dimensions and Weight :



No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Number and Nominal Diameter of Strands No./mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1×1.0	32/0.20	0.7	4.60	38
1×1.5	30/0.25	0.8	5.20	47
1×2.5	50/0.25	0.9	5.50	63
1×4	56/0.30	1.0	6.70	89
1×6	84/0.30	1.1	7.30	123
1×10	80/0.40	1.2	9.00	178
1×16	126/0.40	1.5	11.2	280
1×25	196/0.40	1.8	12.5	371
1×35	276/0.40	2.0	14.0	492
1×50	396/0.40	2.2	16.7	693
1×70	360/0.50	2.1	18.6	913
1×95	475/0.50	2.3	20.3	1160
1×120	608/0.50	2.4	23.4	1441
1×150	756/0.50	2.6	25.1	1730
1×185	925/0.50	2.8	27.8	2088
1×240	1221/0.50	2.9	30.2	2908
1×300	1525/0.50	3.0	34.2	3375
1×400	2013/0.50	3.4	37.1	4250





Impact Resistant	Highly Flexible	Cold Resistant	Low Temperature Resistant	Soldering Heat Resistant	IRM 903 Fuel Oil Resistant





IRM 902 Mineral Oil Resistant	UV Resistant	Ozone Resistant	Corona Resistant	Acid and Alkali Resistant	Abrasion Resistant	Low Toxicity





Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
